Mobile Crushing & Screening Units

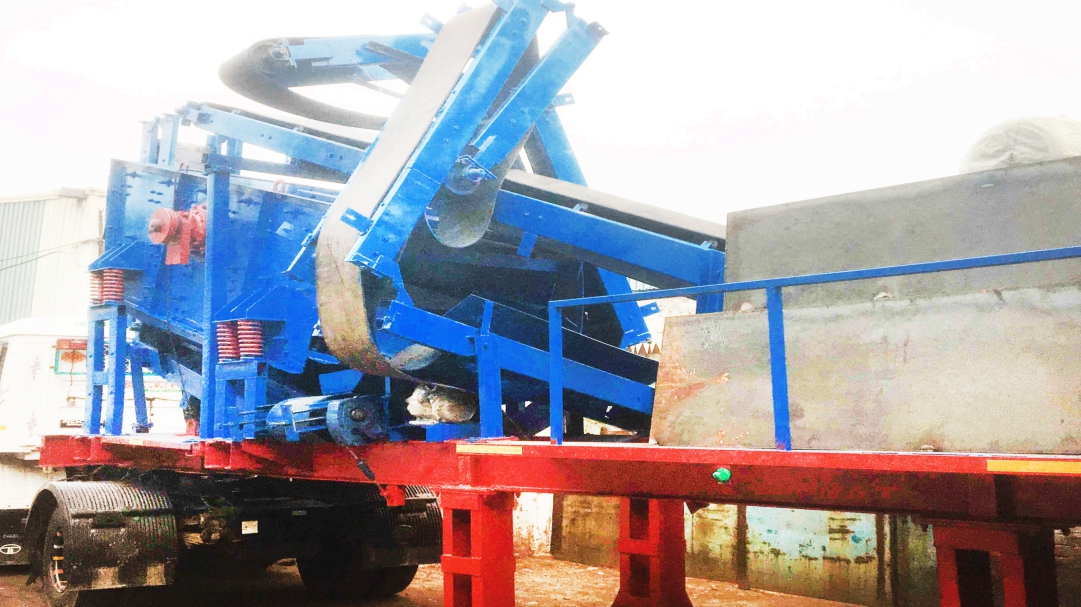

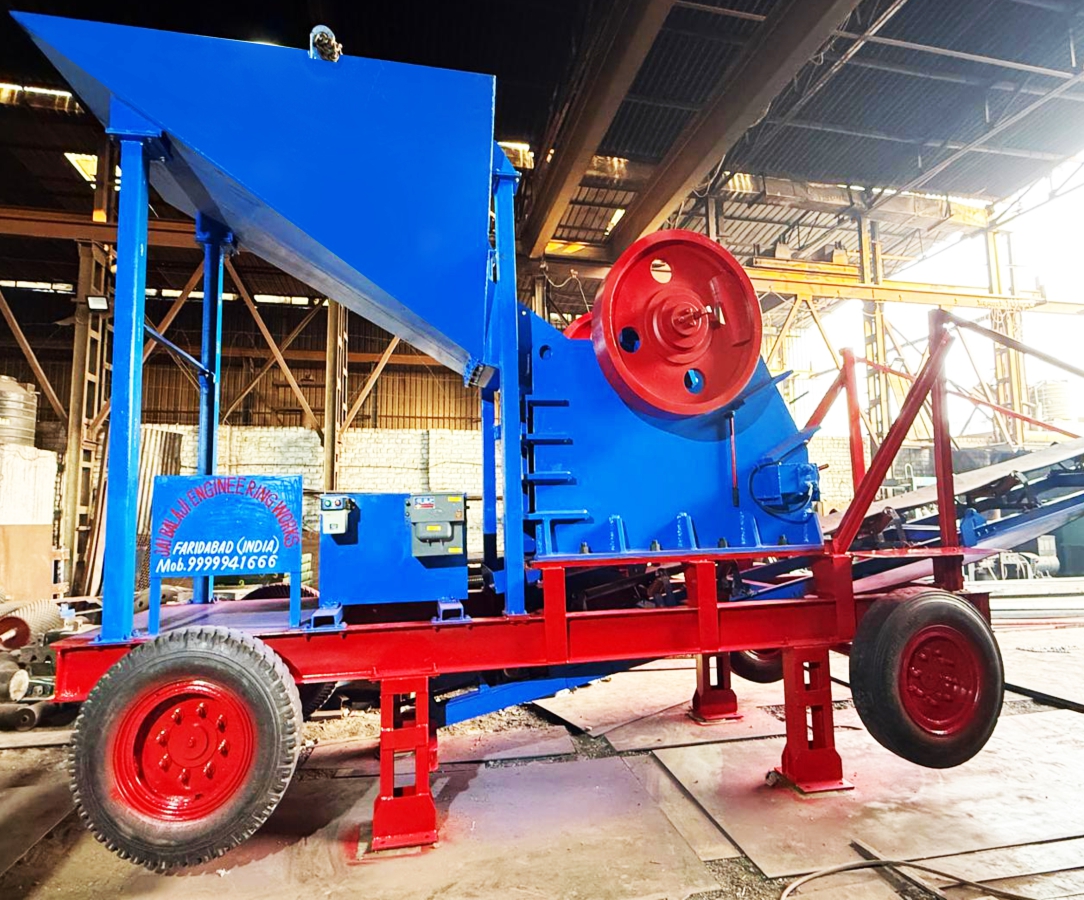

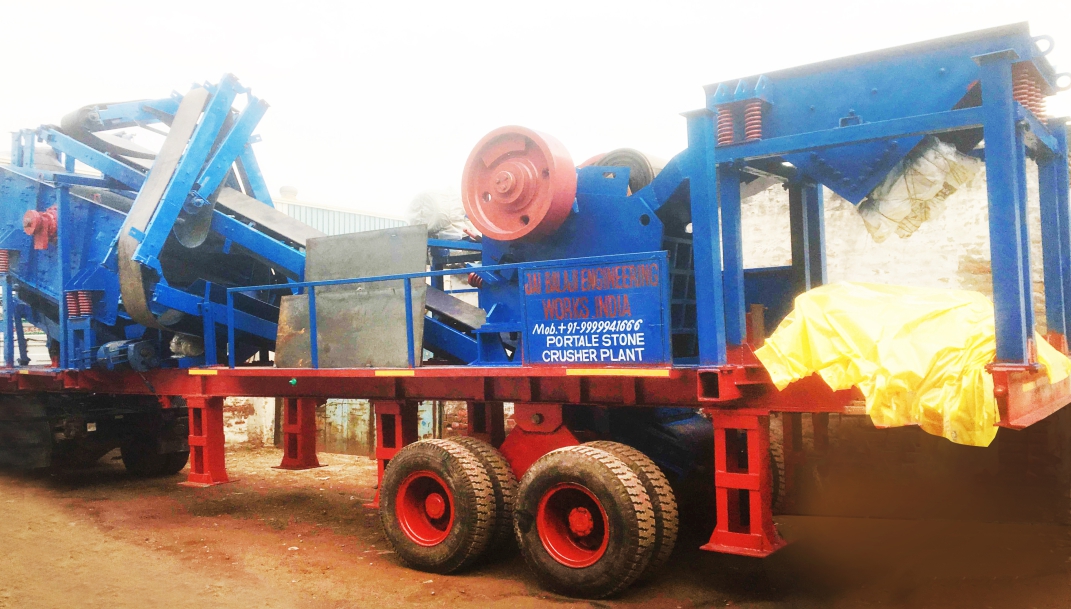

JAI BALAJI manufacture high quality, flexible and efficient portable Mobile Crushing & Screening Unit; :-e the requirement of the customers. Our Mobile crushing plants is equipped with Jaw Crusher, Screen, and Moveable Chassis and diesel engine or electric motor. This Mobile crusher is available:: reduction capacity of 15 TPH. These crushers are best suitable for small road project or construction” hilly and remote areas. We a re also manufacture mobile crusher for GSB, WMM material ri’5d for road project and mobile screening unit for river bed material up to 100 TPH.
Salient Feature of Mobile Crusher & Screening Unit
Jaw crusher can be used either single toggle or double toggle. It well equipped with antifriction and fabricated
all-welded steel construction duly stress relived, which not only gives added -e – r.nout eliminates any risk of
casting failoures
Truntable
The Chassis is made of M.S. joists & other rolled steel sections. Triangular draw-bar with forged steel tow hook is provided.
Moveable Chassis
For swivelling, the chassis is provided with turntable pin, for easy manoeuvre.
Wheel Assembly
Pneumatic wheels are mounted on two square axles with roller bearing.
Engine or Electric Motor
Diesel engine or electric motor is normally supplied with this portable Jaw Crusher.
Complete Assembly
The crusher and the engine are rigidly bolted on the chassis. The drive is affected by flat rubber of 5-EI belt. Guard for protection against accident is provided.
