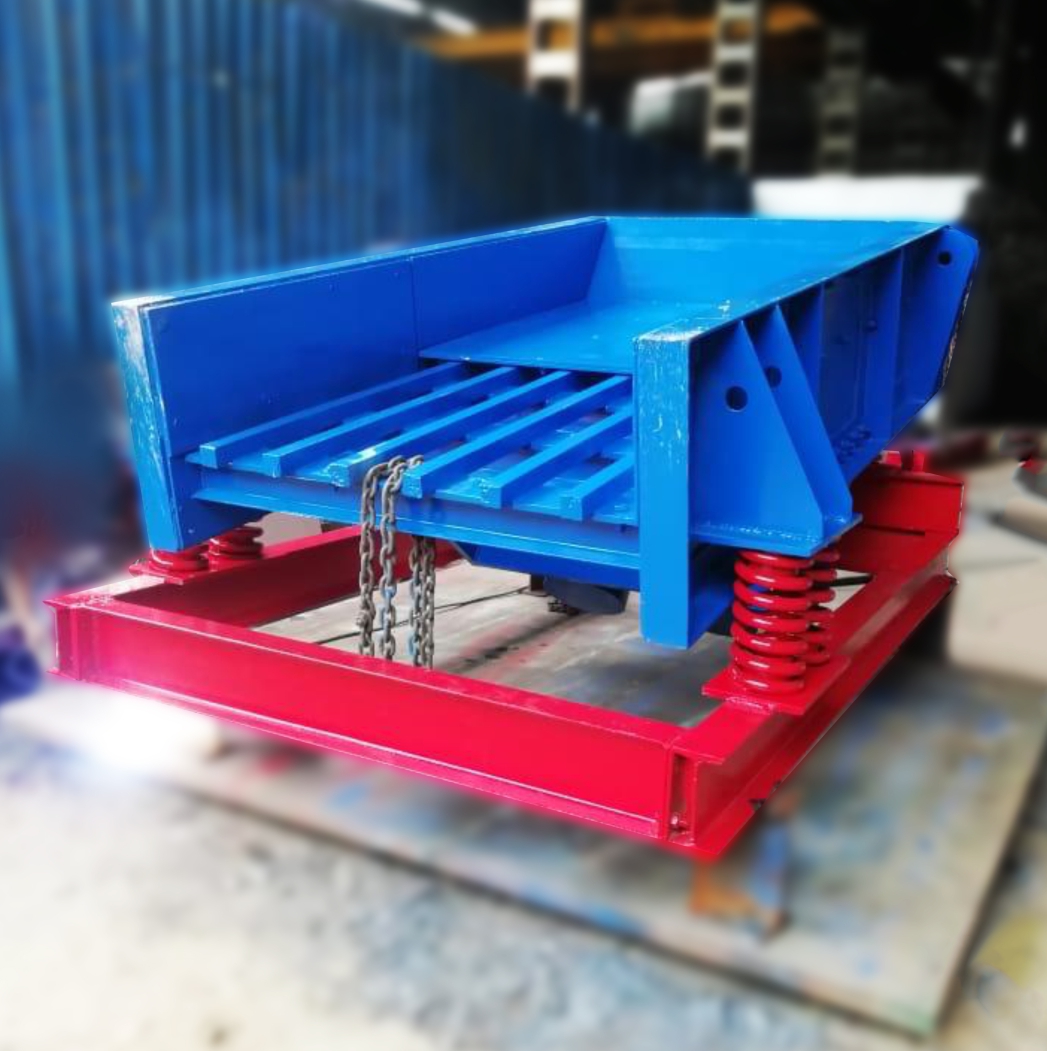

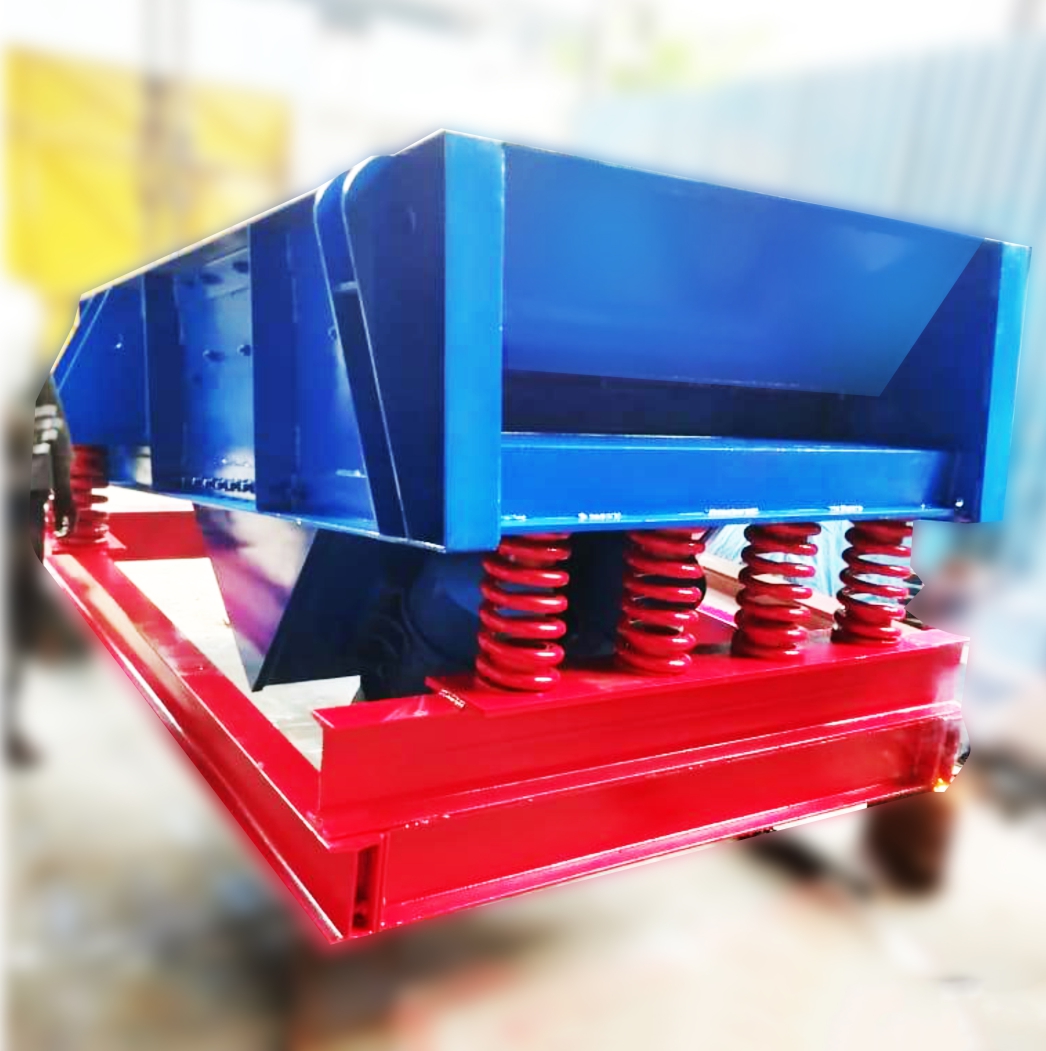

Vibrating Grizzly Feeder

Vibrating Grizzly Feeder, generally installed between a Hopper and Primary Jaw Crusher in a Crushing & Screening Plant, performs the dual function of smooth regulated feeding to the crusher as well as segregation of scalp-or natural fines received from the mines or river bed. It is subject to heavy load and abrasion due to large sized boulders falling at considerable speed from the Hopper. Once at rest on the Vibrating Grizzly Feeder’s Main Body, the large size boulders also tend to impede any kind of vibration produced by ordinary conventional designs. JAI BALAJI has designed a unique twin eccentric parallel shaft mechanism with the axes plane of both shafts at 45″ with the horizontal. Both shafts rotate in opposite direction, and produce substantial vibration of the right kind in the robust main body to feed large size boulders with great ease, while successfully segregating the scalp or natural fines. While all models of JAI BALAJI Vibrating Grizzly Feeders have Wear Resistant plate at the back portion to withstand high load and abrasion from falling boulders, the front portion has evenly spaced High Austenitic Grade Manganese Steel bars to enable scalp or natural fines segregation. Stepped design of these bars ensures continuous smooth feeding and great results.
